1. Introduction

NVIDIA’s NVLink has evolved significantly from its first version to its upcoming versions, enhancing GPU interconnectivity, bandwidth, and scalability in high-performance computing (HPC) and AI workloads. This report provides a comprehensive analysis of NVLink versions from 1.0 to 6.0, covering GPUs, interconnects, racks, and associated power and thermal management strategies.

---

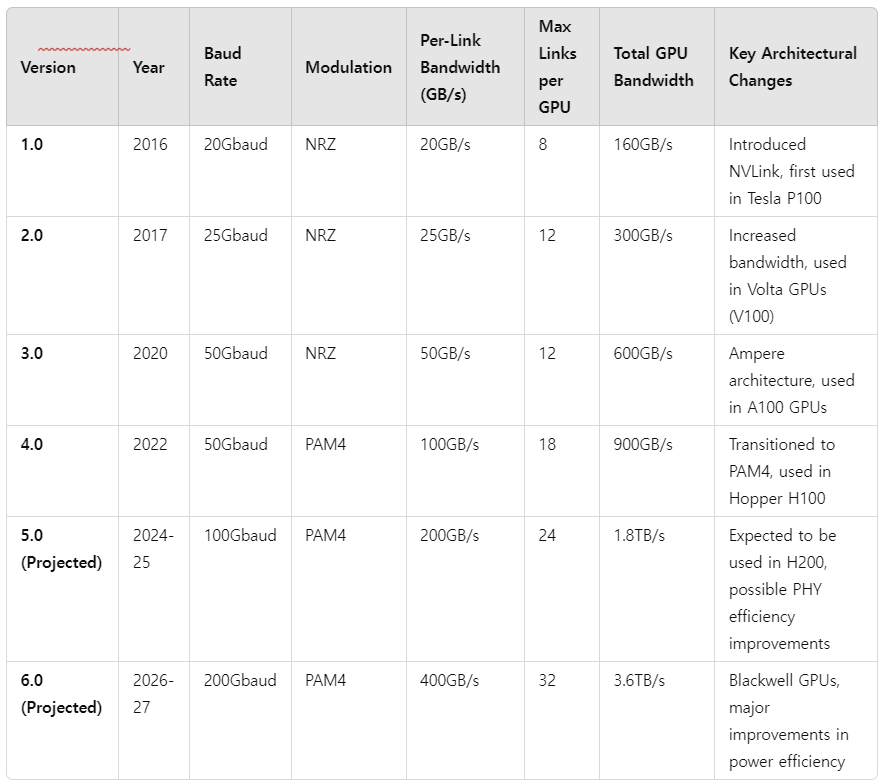

2. NVLink Version Comparison

---

3. GPU Ecosystem Evolution

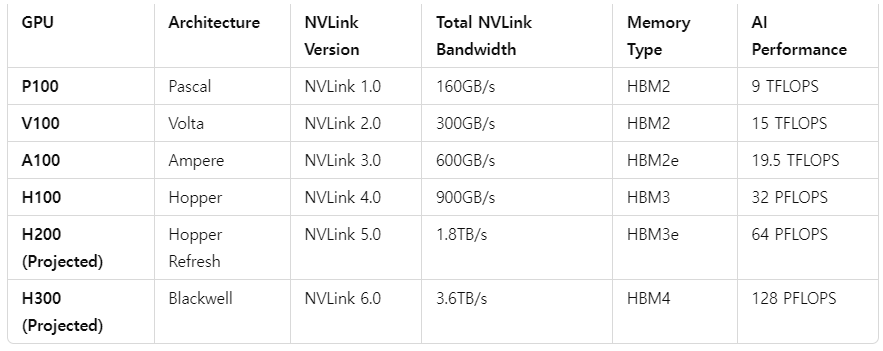

3.1 GPU Advancements: From P100 to H300

These GPUs have progressively increased memory bandwidth, compute performance, and NVLink capacity, enabling high-speed AI training and scientific computing workloads.

3.2 NVLink Interconnects and Expansion to DGX and POD Systems

Each NVLink version has evolved in terms of interconnect density, routing efficiency, and integration with broader system architectures.

• NVLink 1.0 - 3.0: Used traditional GPU-to-GPU links with a shared memory space.

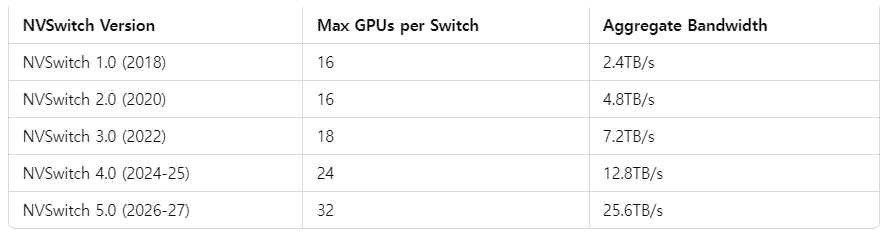

• NVLink 4.0 - 6.0: Implemented NVSwitch to enable full mesh connectivity between multiple GPUs in DGX systems.

NVLink scales up from GPU interconnects to DGX servers and then to SuperPOD clusters for large-scale AI computing.

---

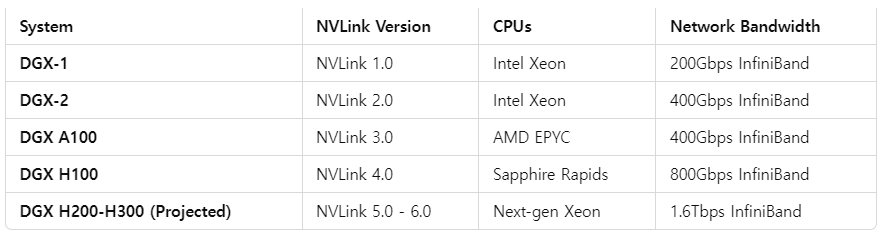

4. Rack-Level Scaling, CPUs, and Memory Evolution

The CPU and memory hierarchy has evolved alongside NVLink:

• Intel to AMD EPYC to Sapphire Rapids to support increasing PCIe lanes and memory bandwidth.
• Memory from HBM2 to HBM4, reducing latency and increasing data throughput.
• Storage shifting to NVMe over fabrics for high-speed AI model loading.

---

5. Power and Thermal Management Challenges

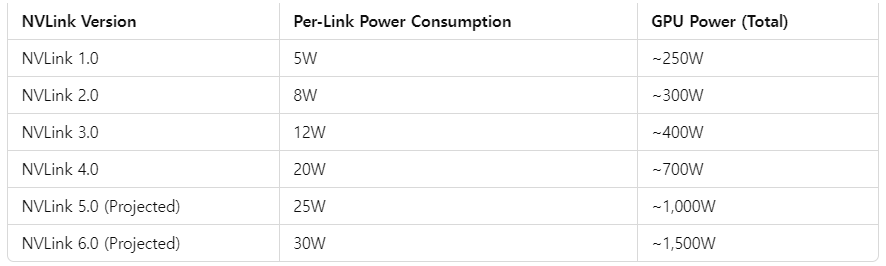

5.1 Increasing Power Requirements

NVLink consumes more power with increasing speeds, requiring advanced cooling solutions.

5.2 Thermal Management Solutions

• Liquid Cooling: DGX H100 introduced liquid cooling to handle increased GPU heat.
• AI-Driven Power Optimization: Adaptive clock scaling and dynamic voltage adjustments will be crucial for future GPUs.
• Rack-Level Cooling: High-density racks with phase-change cooling could be required for NVLink 6.0.

---

6. Conclusion

The evolution of NVLink from version 1.0 to 6.0 showcases NVIDIA's commitment to high-performance interconnects. The increase in speed, number of links, and total bandwidth will enhance multi-GPU scaling, but it also introduces power and thermal challenges. Future improvements will require innovations in PHY efficiency, cooling technology, and AI-driven power management to sustain the next generation of high-performance computing.

---

7. Key Takeaways

• NVLink has evolved from NRZ to PAM4, doubling bandwidth per generation.
• NVSwitch advancements have enabled better multi-GPU scalability.
• DGX systems have adopted high-speed InfiniBand and OSFP networking to complement NVLink.
• Power consumption and thermal challenges require advanced cooling and power optimization techniques.

Future considerations: As we move towards NVLink 6.0 and beyond, the industry must innovate power-efficient interconnects, high-density cooling, and optimized network architectures to support massive AI workloads and supercomputing applications.
